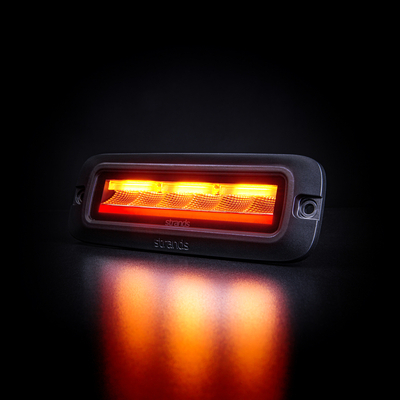

LED-tagatuli SIBERIA (multifunkts.)

Type of Lamp LED
PCS LED_s Brake:21 Reverse:6 Tail light:9 Warning:21
Voltage (V DC) 10-32V DC
Theoretical effect (w) 12V Brake:21W Reverse:6W Tail light:9W Warning:31.5W
Theoretical effect (w) 24V Brake:21W Reverse:6W Tail light:9W Warning:31.5W
Consumption (w) 12V Brake:10.2W Reverse:3.9W Tail light:5.4W Warning:9.5W
Consumption (w) 24V Brake:10.4W Reverse:4.2W Tail light:5.5W Warning:9.7W
Functions Brake light Reverse light Tail light Warning light
Theoretical lumen Reverse light: 546
Actual lumen Reverse light: 322
1 LUX @ m Reverse light: 14
Kelvin 6000
IP-class 67/69K
Colour housing Black
Colour lens Clear
Colour LED_s Red/white/amber
Beam pattern Flood
Connection Cable
Cable length (mm) 2500
Material bracket Flush mount: Alumimun U bracket: Metal plate
Material housing/chassi Aluminium
Material lens Polycarbonate
Length (mm) Flush mount: 214 U-bracket: 172
Depth (mm) Flush mount: 71,5 U-bracket: 77
Height (mm) Flush mount: 77 U-bracket: 50
Height including bracket (mm) U-bracket: 53,8
CC (mm) Flush mount: 196
Operating temperature -30°C - +65°C
ADR-approved No
E-approved Yes
According to regulation ECE R148, R65
EMC ECE R10
