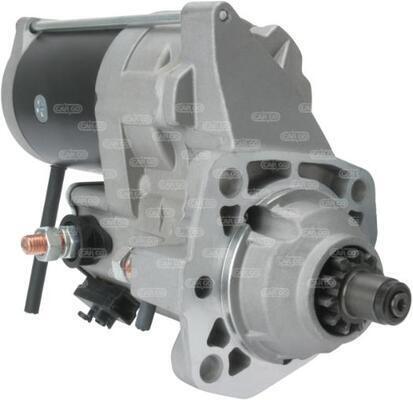

Starter 228000-6560 24V 7,5KW

Voltage 24
kW 7.5

Mount. flange 89.00
Drive dist. 48.00
Mount. hole 3 mm 11.50
Mount. hole 2 mm 11.50
Mount. hole 1 mm 11.50
Dist./back 160.50
Dist./front 74.50
No./teeth 11
B+ M12
Terminal 50 M5
Gear type GR
Dist. 2 90.00
Dist. 3 90.00
Dist. mm 127.00
Rotation CW
B- M12
Total length mm 319.00
No./mount. holes 3 (0)

Clutch type Wet
Drive type Steel
Prod. info BN
Waterproof Yes
Oil sealed Yes
Replacing
228000-6560 Denso
228000-6561 Denso
228000-7410 Denso
228000-7411 Denso
228000-7412 Denso
228000-7413 Denso
F032114222 HC-Cargo
RE501050 John Deere
RE501060 John Deere
RE501150 John Deere
RE69705 John Deere
RE70958 John Deere
SE501406 John Deere
TY24443 John Deere
