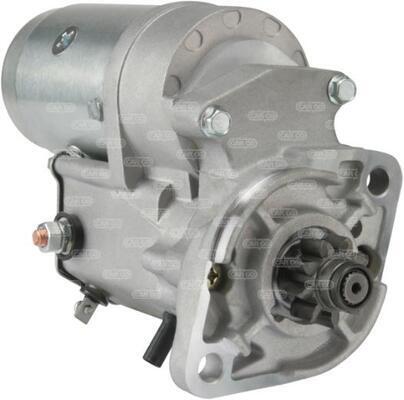

Starter KUBOTA 2,0KW 12V

Voltage 12
kW 2.0
No./teeth 9
Rotation CW
Gear type GR
Mount. flange 82.50
B+ M8
No./mount. holes 2 (0)
Drive dist. 26.00
Mount. hole 1 mm 12.20
Mount. hole 2 mm 12.20
Dist./back 148.00
Dist./front 38.50
Mount. bracket No
Dist. mm 105.00
Total length mm 232.50
Drive type Steel, Prod. info BN, Waterproof No, Oil sealed No


028000-9030 Denso
028000-9031 Denso
028000-9032 Denso
15425-63010 Kubota
15425-63011 Kubota
15425-63012 Kubota
15425-63013 Kubota
15425-63014 Kubota
15425-63016 Kubota
16652-63012 Kubota
16652-63013 Kubota
17121-63010 Kubota
17123-63016 Kubota
17490-63014 Kubota
1K371-63010 Kubota
228000-0691 Denso
228000-4570 Denso
228000-4571 Denso
228000-4572 Denso
228000-4573 Denso
228000-4590 Denso
228000-4591 Denso
228000-4592 Denso
228000-4593 Denso
228000-4750 Denso
228000-5270 Denso
228000-5273 Denso
428000-2030 Denso
