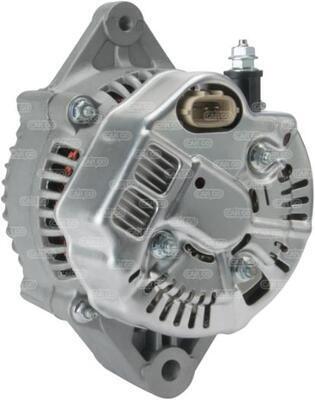

Generaator SUZUKI 14V 70A

Voltage 14
Amp 70
Pulley dist. 90.50
Width/holder arm 58.00
Bracket hole 10.40
Belt. adj. brackethole pos. 60
Belt. adj. bracket hole M8
Pulley dia. 55.00
Grooves/pulley 4
Radius 80.00
Radius 2 84.00
B+ M6
Position/B+ in min. 5
D+ Size Plug
Rotation CW
Plug no. PL58
Total length mm 159.50
Terminal type L-IG
Pulley SP
Fan IF
Regulator type IR
Prod. info BN

Sobib:
- Suzuki Alto 1,1
- Suzuki Baleno 1,3 / 1,6 / 1,8

101211-0550 Denso
101211-0551 Denso
101211-0720 Denso
101211-0721 Denso
101211-0722 Denso
101211-0723 Denso
102211-2190 Denso
102211-5020 Denso
102211-5021 Denso
102211-5070 DensO
102211-5150 Denso
102211-5151 Denso
102211-5160 Denso
102211-5161 Denso
102211-5280 DensO
102211-5610 Denso
31400-60G10 Suzuki
31400-60G10-000 Suzuki
31400-60G11 Suzuki
31400-60G11-000 Suzuki
31400-60G12 Suzuki
31400-60G12-000 Suzuki
31400-60G13 Suzuki
31400-60G13-000 Suzuki
31400-66D10 Suzuki
31400-66D10-000 Suzuki
31400-66D11 Suzuki
31400-75F50 Suzuki
31400-75F50-000 Suzuki
31400-75FD5 Suzuki
31400-77E20 Suzuki
31400-77E21 Suzuki
31400-77E22 Suzuki
31400-77E23 Suzuki
31400-77E23-000 Suzuki
31400-77E24 Suzuki
31400-77E24-000 Suzuki
31400-79G00 Suzuki
31400-79G00-000 Suzuki
31400-80G00 Suzuki
31400-83E00 Suzuki
31400-83E00-000 Suzuki
31400-M79G00 Suzuki
A005TA6191 Mitsubishi
A005TA6191ZC Mitsubishi
A005TA6191ZE Mitsubishi
A005TA6891 Mitsubishi
A005TA6891A Mitsubishi
A5TA6191 Mitsubishi
A5TA6191ZC Mitsubishi
A5TA6191ZE Mitsubishi
A5TA6891 Mitsubishi
A5TA6891A Mitsubishi
JA1293IR HC-PARTS
