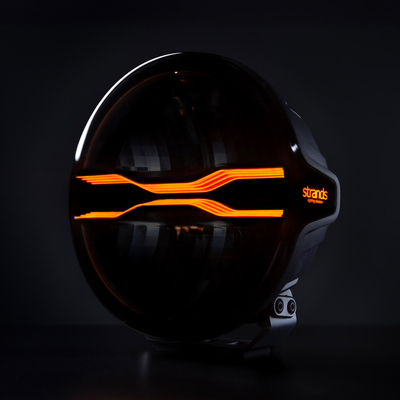

LED-kaugtuli FOR9T DRAGON DRIVE 9"

Type of Lamp LED
PCS LED_s 4
Voltage (V DC) 10-48V DC
Consumption (w) 12V 141
Consumption (w) 24V 142
Actual lumen 9300
1 LUX @ m 586
Kelvin 6500
IP-class IP67
Color housing Black
Color lens Clear/dark
Color LED_s White and Amber
Beam pattern Extended Beam
Position light Yes, amber and white
Connection DT4
Cable length (mm) 150
Material bracket Stainless steel
Material housing/chassi Aluminium
Material lens Polycarbonate
Depth (mm) 90
Height including bracket (mm) 226
Diameter (mm) 220
Operating temperature -40 - +65°C
ADR-approved No
E-approved No
EMC ECE R10
