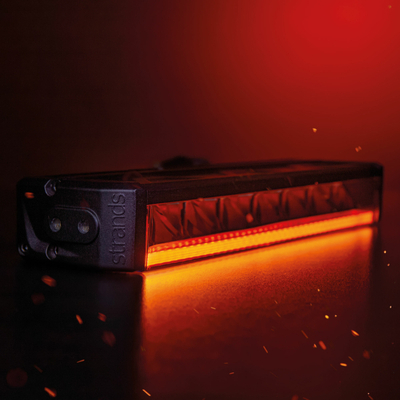

LED-kaugtuli FIREFLY 10"

Type of Lamp LED
Voltage (V DC) 10-48V DC
Theoretical effect (w) 12V 72
Theoretical effect (w) 24V 70
Consumption (w) 12V 75
Consumption (w) 24V 72
Functions White position lights,Amber position lights,Driving lights
Theoretical lumen 6200
Actual lumen 5010
1 LUX @ m 363
Kelvin 6000
IP-class 68
Color housing Black
Color lens Clear
Color LED_s Amber & White
Beam pattern Combo
Position light Yes
Connection DT4
Cable length (mm) 500
Material bracket side bracket: 304 stainless steel, sliding bracket: Aluminium
Material housing/chassi Aluminium
Material lens PC
Length (mm) 277
Depth (mm) 70
Height (mm) 38,5
Height including bracket (mm) 56
CC (mm) 249
Operating temperature -40 - +65°C
ADR-approved No
E-approved Yes
According to regulation ECE R148, R149
Reference number 25
EMC ECE R10
