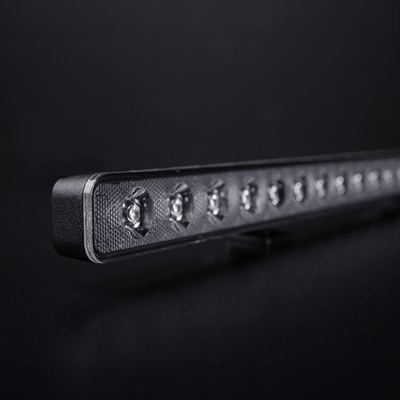

LED-kaugtuli NUUK E-Line Low Profile

Type of Lamp LED
PCS LED_s 18
Voltage (V DC) 9-36V DC
Theoretical effect (w) 12V 108
Theoretical effect (w) 24V 108
Consumption (w) 12V 82
Consumption (w) 24V 77
Theoretical lumen 8800
Actual lumen 7800
1 LUX @ m 417
Kelvin 5000K
IP-class 68/69K
Color housing Black
Color lens Clear
Beam pattern Optimized
Connection DT-3
Cable length (mm) 2500
Material bracket Aluminium
Material housing/chassi Aluminium
Material lens Polycarbonate
Length (mm) 514
Depth (mm) 36,7
Height (mm) 30
Height including bracket (mm) 39,5
Operating temperature -40 - +60°C
ADR-approved No
E-approved Yes
According to regulation ECE R149
Reference number 40
EMC ECE R10
