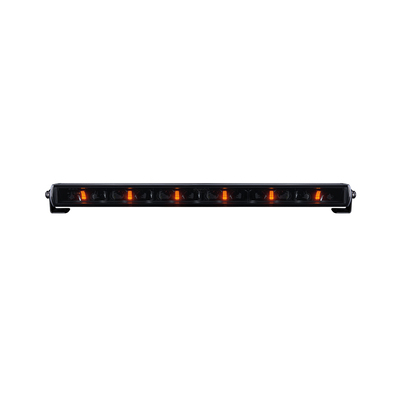

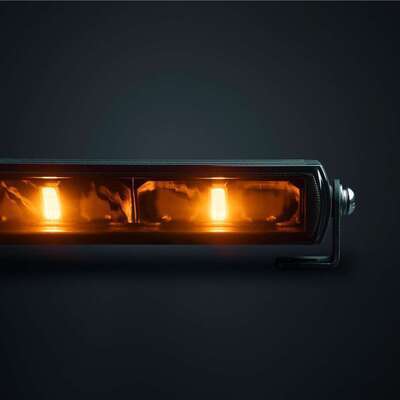

LED-kaugtuli DARK KNIGHT NUUK 20"

Type of Lamp LED
Type of LED LP
PCS LED_s 12
Voltage (V DC) 9-36V DC
Theoretical effect (w) 12V 120
Theoretical effect (w) 24V 120
Consumption (w) 12V 94
Consumption (w) 24V 94
Theoretical lumen 11400
Actual lumen 9500
1 LUX @ m 452
Kelvin 6000
IP-class 68/69K
Colour housing Black
Colour lens Black
Beam pattern Combo
Position light Yes, amber and white
Connection DT4
Cable length (mm) 500
Material bracket Side bracket: Stainless steel (SUS201) Bottom bracket: Aluminium (#6063)
Material housing/chassi Aluminium
Material lens Polycarbonate
Length (mm) 515
Depth (mm) 69,8
Height (mm) 38,5
Height including bracket (mm) 51,3
Operating temperature -40°C - +60°C
ADR-approved No
E-approved Yes
According to regulation ECE R7, R112
Reference number 40
EMC ECE R10
