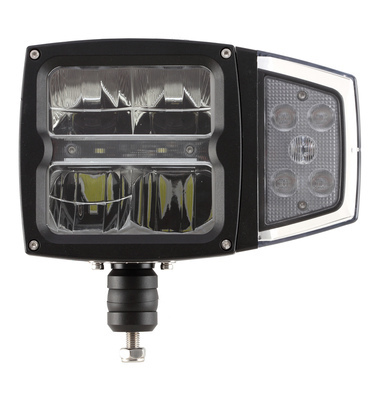

LED-sõidutuli (soojend. klaas)

Type of lamp LED
Type of LED High beam:ETI
Low beam:ETI
Park light:LUMILEDS
Indicator:ProLight
PCS LED_s High beam: 4
Low beam: 2
Park light: 2
Indicator: 8
Voltage (V DC) 10-30V DC
Theoretical effect (w) 12V High beam:38W
Low beam:20W
Park light:1.5W
Indicator:20W
Heated lens:20W
Theoretical effect (w) 24V High beam:38W
Low beam:20W
Park light:1.5W
Indicator:20W
Heated lens:20W
Functions High beam
Low beam
Park light
Indicator
Heated funtion
Theoretical lumen High beam:3600LM
Low beam: 1800LM
Park light :220LM
Indicator :560LM
Actual lumen High beam:2900LM
Low beam: 1500LM
Park light :130LM
Indicator :420LM
1 LUX @ m High beam: 280
Low beam: 163
Kelvin 5500
IP-class 68
Colour housing Black
Colour lens Clear
Beam pattern Driving beam
Position light Yes
Connection DT
Cable length (mm) 300
Material bracket Stainless steel
Material housing/chassi Aluminium
Material lens Tempered glass
Length (mm) 229
Depth (mm) 80
Height (mm) 150
Height including bracket (mm) 170
Operating temperature -40~+60 ° C
ADR-approved No
E-approved Yes
According to regulation ECE R112.R7.R6
Reference number 17.5
EMC ECE R10
