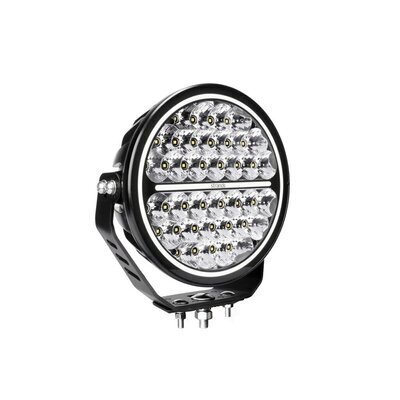

LED-kaugtuli SIBERIA NIGHT RANGER 9"

Type of lamp LED
Type of LED Osram
PCS LED_s 34
Voltage (V DC) 9-32V DC
Theoretical effect (w) 12V 170
Theoretical effect (w) 24V 170
Consumption (w) 12V 145.3
Consumption (w) 24V 144.6
Theoretical lumen 20400
Actual lumen 13377
1 LUX @ m 465
Kelvin 6000
IP-class 67/69K
Colour housing Black
Colour lens Clear
Colour LED_s White and Amber
Beam pattern Flood
Position light Yes. amber and white
Connection DT-4
Cable length (mm) 500
Material bracket Stainless steel
Material housing/chassi Aluminium
Material lens Polycarbonate
Length (mm) 228.6
Depth (mm) 86.7
Height (mm) 228.6
Height including bracket (mm) 249.3
Diameter (mm) 228.6
Operating temperature -20°C - +45°C
E-approved Yes
According to regulation ECE R112. R7
Reference number 30
EMC ECE R10
