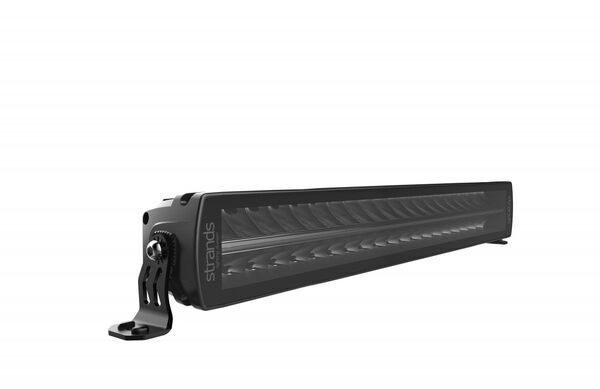

LED-kaugtuli SIBERIA DR 22”

Vt. videot

- 9-32V
- 16000/10020lm
- 1Lux@538m
- IP67/69K
- parktuli valge/oranþ
- juhe 500mm
- 562x72x76mm
- ECE R10/R112
- referents nr 50

Type of lamp LED
Voltage (V DC) 9-32V DC
Theoretical lumen 16000
Actual lumen 10020
1 LUX @ m 538
IP-class IP67/69K
Colour housing Black
Colour lens Clear
Colour LED_s White
Beam pattern Combo
Position light Yes. white and amber
Connection DT-4
Cable length (mm) 500
Material bracket Stainless steel
Material housing/chassi Aluminium
Material lens Polycarbonate
Length (mm) 562
Depth (mm) 71.6
Height (mm) 76
Height including bracket (mm) 89
Operating temperature -20°C - +45°C
ADR-approved No
E-approved Yes
According to regulation ECE R112
Reference number 50
EMC ECE R10
